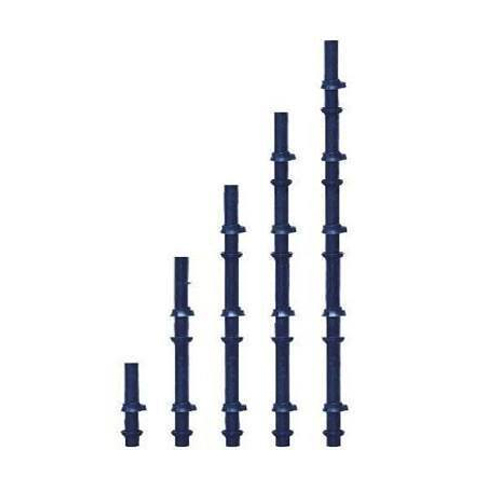

Cuplock verticals are principally used in access scaffolding applications and also as a base structure for formwork support applications.
Cuplocks are made of 40 NB "B class pipe".
Available in the following sizes:
–0.5 Meter
–1.0 Meter
–1.5 Meter
–2.0 Meter
–2.5 Meter
–3.0 Meter
Ledgers are made of 40 NB "B class pipe" with forged ledger blades that are welded at the ends which locate into bo om cups of the vertical and are locked in place by the corresponding top cups.
Length of the ledger is calculated between center to center of two verticals.
Ledger are available in the following sizes:
–0.9 Meter
–1.0Meter
–1.2Meter
–1.5Meter
–2.0Meter
–2.5Meter
M.S. Fixed Coupler
It is used for joining 40 NB pipes at a 90 degree angle to other 40 NB pipes, ledgers or props.
No loose components
Reduced time and labour cost

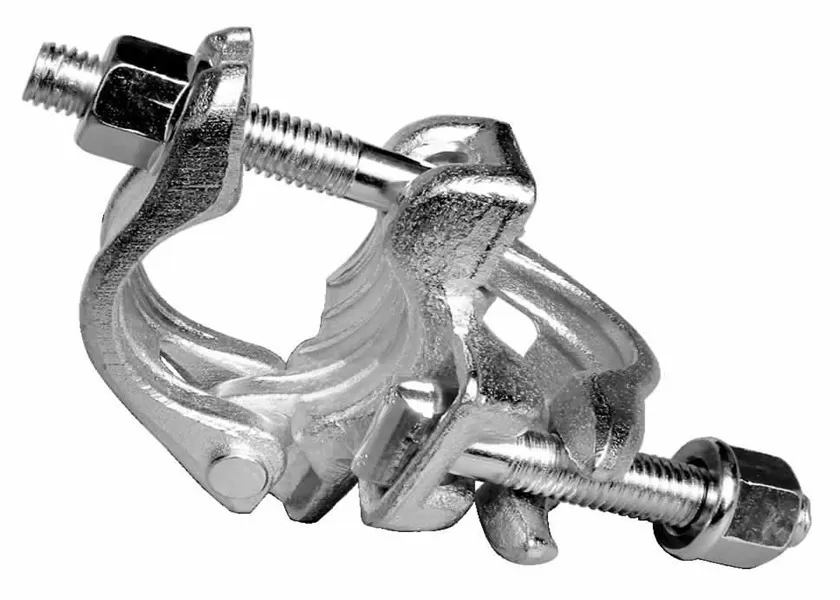

M.S. Swivel Clamp
Used for connecting 40NB pipes at any angle to other 40NB pipes, ledgers or props for diagonal bracings.

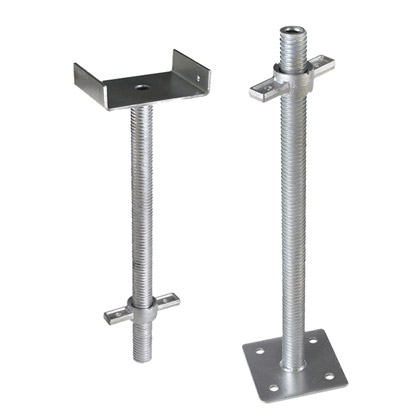

Adjustable U‐Jacks/ Stir‐up Heads are used for supporting floor forms, slab & beams.
Adjustable Base Jack/ Base plates are used to secure the pipe/ cuplock to the ground.
Available Size
– 350mm to 450mm.
Acro Spans are ideal to be used as self-supporting runner in shuttering systems.

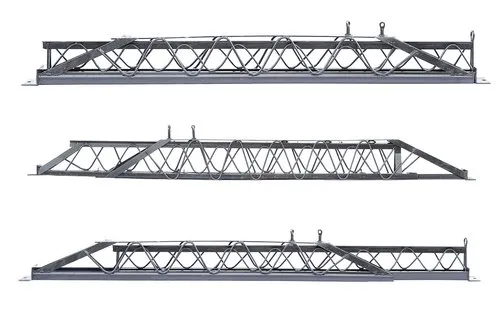

Adjustable Beam spans are installed under shuttering plates or floor form panels.
Standardized size
– 2.5 x 2.5 meter (2350 x 2350 mm)

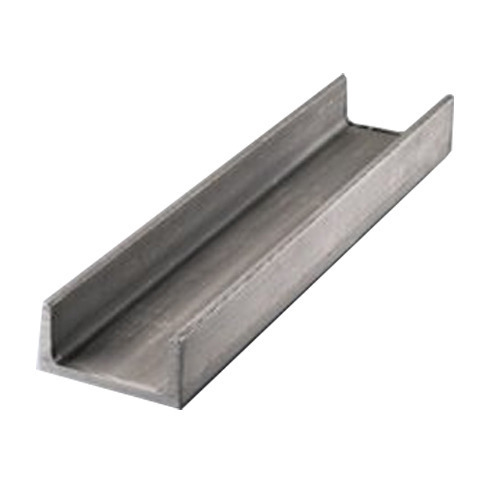

A channel is a right angle "C" sec on. They are also called C Channels. Along with beams, channels are mainly used in structural applications. M.S. Channels are used to support steel plates or floor from below. It is fixed on top of Adjustable Props / Cuplock system.
Available sizes:
–2 .5 Meters
–3 Meters
Shuttering plate is water tight shuttering which can bear the load of cement concrete placed on it. It can be used for horizontal, vertical or any other shape required for the work. It gives leveled surface which has good appearance.
Available sizes:
–1.5ft x 3ft (450 x 900 mm)
–0.75ft x 3ft (230 x 900 mm)
–1ft x 3ft (300 x 900 mm)
– 2ft x 3ft (600 x 900 mm)
–1 ft x 4ft (300 x 1200 mm)
–1.5ft x 4ft (450 x 1200 mm)
–2 ft x 4ft (600 x 1200 mm)
Telescopic Props is considered as one of the ideal, most economical & most reliable method of support for all kinds of form work, slabs, beams, walls and columns.
Advantages
– Easy to install
– Reusable
– Precise dimentions
– Excellent Durability

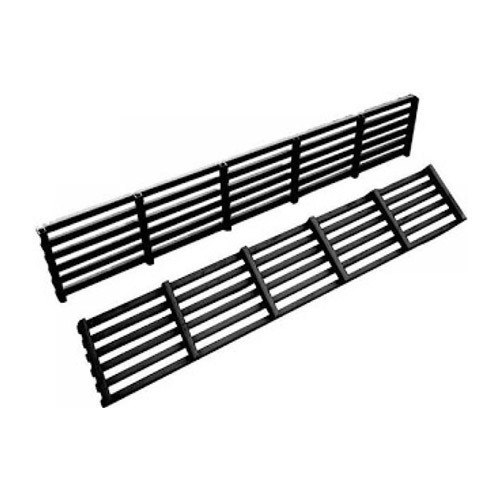

Plastering Plank/M.S Challis/Jali/ Platforms are widely used in the new construction, as it speeds up work in high areas by allowing more than one worker on the platform, and providing a place to handle materials.
Standardized size
– 18 Inch x 24 Inch.
M.S. Pipes are available on hire for all infrastructural & construction on projects.
It is made of 40 NB “B Class pipe”.
Available Sizes
– 3 Meter
– 6 Meter

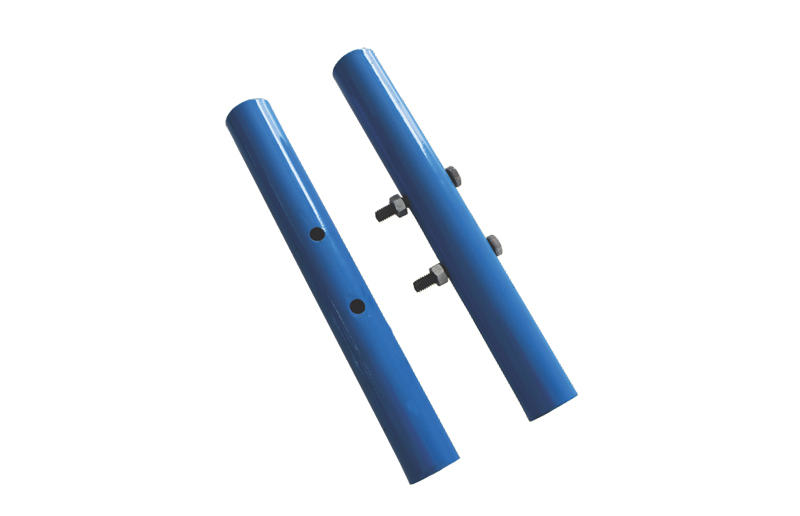

Spigot pin is used as internal vertical to vertical jointer.
Though small in size, they are an extremely important part of the scaffolding system as they are required to support multiple stories of scaffolding.
Spigot pin have a standardized size.
